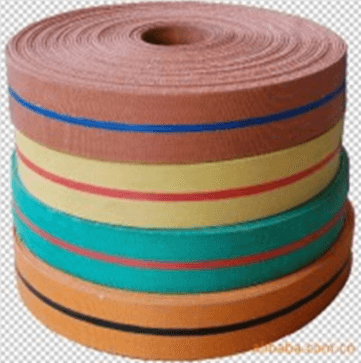

Flat Transmission Belt
Nylon Flat Transmission Belt
Nylon Flat Transmission Belt
Category
Special Construction
Series
Flat Transmission Belt
Product Overview
- • Whether this series matches the machine family you are sourcing for.
- • What structure or profile data should be checked before RFQ.
- • When to stop browsing and send the project for technical review.
Ready for technical review
Send marking photos, pulley sizes, speed/load, and annual demand. We will reply with a practical replacement or sourcing path.
- • Belt marking or sample photo
- • Pulley diameter and tooth/profile data
- • Target quantity and delivery expectation
Feature
- Color: as per customers' requirements
- Plies: 2-10
- Width: 25mm-1500mm
- Length: 100 mtr./ Roll
- Category: 28 OZ(ounce) and 32 OZ(ounce).
- Fabrics: Hard cotton ducks/soft cotton
- Specifications Flat transmission belt is a common flat rubber belt, also called transmission belt, usually uses high-quality cotton canvas as its skeleton layers. It is mainly used in factories, mines, docks, metallurgical industry, ordinary mechanical power transmission, great power processing of grains like rice and wheat, irrigation equipment, wood cutting and other power transmitting equipment for industry.
- Characteristic:. Uniformity in Thickness & Width. Higher longitudinal & transverse strengths. Higher levels of adhesion. Controlled elongation. Lighter in weight thus consuming less power. Improved resistance to flex fatigue test.
Standards & Dimensions
Production Range
Technical Data
1.Overall thickness tensile strength of flat transmission belt
2.Elongation at break:in vertical tensile test,the elongation at break should not exceed 20%.
3.Adhesion strength:adhesion between flat belt layers is no less than 3.0KN/M.
Products specification
Proceed with RFQ
When you submit the inquiry, keep the model or section reference shown on this page, then add pulley data, machine type, length basis, and quantity target.
